Optional: 5T/10T/20T/30T
Key features:
It is mainly suitable for the testing of metal and non-metallic materials, such as rubber, plastic, wire and cable, optical fiber and cable, safety belt, safety belt, leather belt composite material, plastic profile, waterproof membrane, steel pipe, copper, profile, spring steel, bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, non-ferrous metal wires tensile, compression, bending, shearing, stripping, tearing, two-point extension (need to be equipped with an extensometer) and other tests.

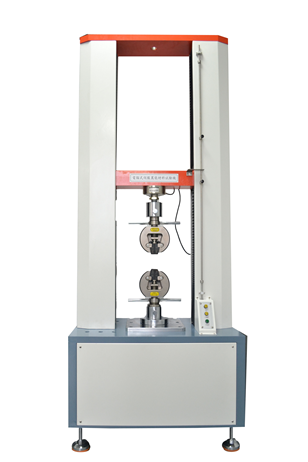

This machine adopts mechatronics design, mainly composed of force sensor, transmitter, microprocessor, load drive mechanism, computer and color inkjet printing mechanism. It has a wide and accurate loading speed and force measurement range, high accuracy and sensitivity for the measurement and control of load and displacement, and can also carry out automatic control tests of constant velocity loading and constant velocity displacement. Floor-mounted models, modeling and painting fully consider the relevant principles of modern industrial design and ergonomics.
Key features:
The controller adopts an embedded monolithic microcomputer structure and built-in powerful measurement and control software, integrating measurement, control, calculation and storage functions. It has the function of automatically calculating stress, elongation (need to be equipped with an extensometer), tensile strength, elastic modulus, and automatically counting the results. Automatically record the maximum point, break point, force value or elongation at the specified point; The computer is used to carry out the dynamic display of the test process and test curve, and the data is processed, and after the test, the graphical processing module can be used to re-analyze and edit the data of the curve amplification, and the report can be printed, and the product performance has reached the international advanced level.
Technical parameters:
| Maximum load | 10,000,20,000kg within self-selection |
| Accuracy level | Level 1 |
| Effective force measurement range | 0.4%~100% (Level 1) |
| Force measurement accuracy | The ± of the indicated value is within 1% |
| Tester resolution | The maximum load is 1/200000, and the internal and external gears are not divided, and the resolution remains unchanged throughout the process |
| Load sensor | Basic configuration: one pull and pressure sensor (maximum load).
Expanded configuration: Multiple sensors can be added |
| Effective test width | 400mm (can be widened according to customer requirements) |
| Effectively stretches the space | 800mm (can be increased according to customer requirements) |
| Test speed range | 0.001～250mm/min |
| Displacement measurement accuracy | The ± of the indicated value is within 1% |
| Deformation measurement accuracy | ± within 1% of the indicated value (large deformation or small deformation can be selected according to customer requirements) |
| Test bench safety device | Electronic limit protection |
| Test bench lifting device | Fast/slow speed automatic control, can be jogged |
| Test bench return function | Manual or automatic selection, automatic or manual return to the initial position of the test at maximum speed after the end of the test |
| Overload protection | If the maximum load exceeds 10%, the machine will be automatically protected |
| Fixture configuration | A set of stretch fixtures |
| Host size | 900*600*2000mm (L*W*H) |
| powertrain | Servo motor + high-precision ball screw |
| Power supply | 220V/50HZ |
| Power | 4.4KW (according to different force value requirements, different power motors are standard) |
| Main unit weight | (approx.) 500 kg |
Machine accessories and configuration details
- The main engine of the testing machine 1 set
1.1 Servo motor 1 set
1.2 American high-precision load transmitter 1
1.3 Reduction system 1 set
1.4 Taiwan TBI precision screw 1 set
- Professional testing software based on Windows XP operating system 1 set
- Haier brand computer (optional) 1 unit
- 1 color inkjet printer (optional).
- Stretching and compression attachments 1 set
- Random tools (provide special tools for installation, maintenance and operation) 1 set
- 1 set of technical data (instruction manual, warranty card, certificate).
