Structural design
The vertical structure is used for various tools, knives and parts, as well as terminals, clocks, diamonds, etc.
The horizontal structure is used for various cams, screw spindles, gears, forming milling cutters, etc.

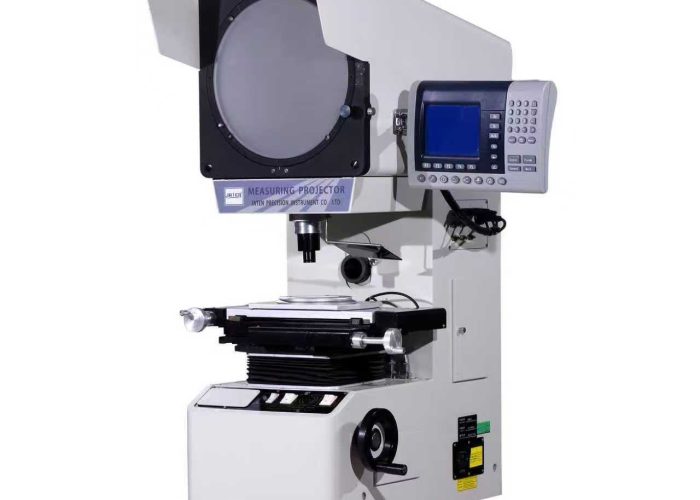

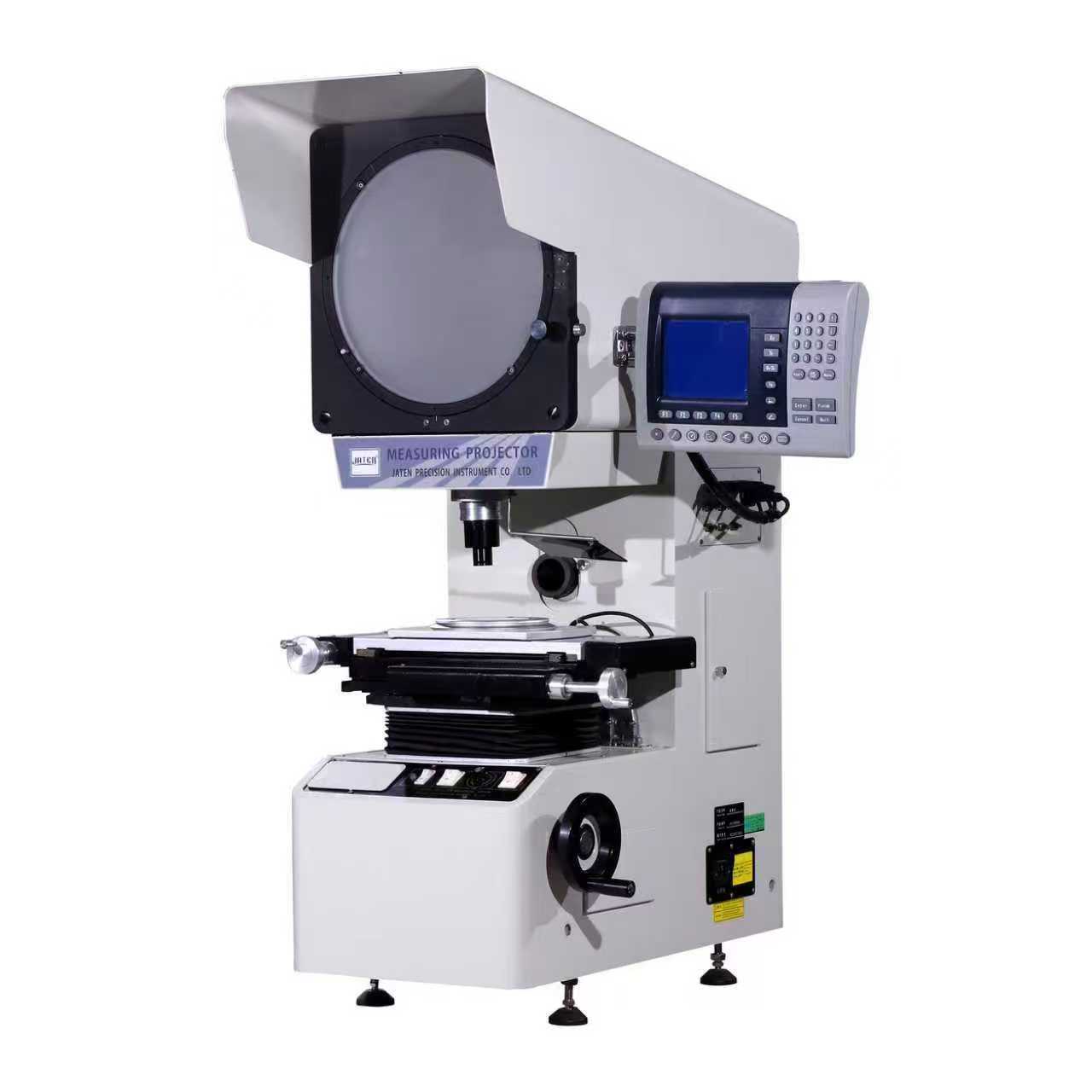

- Vertical

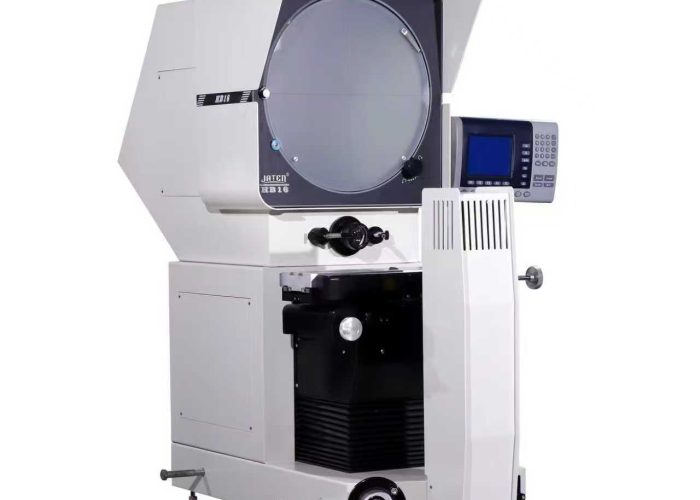

- horizontal
Product Features
This product features a superior optical system, with clear objective lens imaging and precise magnification. Under transmitted light, contour measurement error is less than 0.08%, while coordinate measurement indication error can reach (3 + L/200) µm. Equipped with a dedicated micro-printer and foot switch, data output and sampling are convenient. Workpiece images can be either fully erected or inverted. The projector’s Z-axis lift utilizes a guide rail system, enhancing stability and durability. The projector delivers clear imaging and precise magnification.
Optional Accessories
Objective lenses of different magnifications are used for observations in different usage scenarios
Available models: 5X 10X 20X 50X 100X
After-Sales Service
we ensure your dimensional measurement systems operate at peak performance long after installation. Our comprehensive after-sales support combines rapid response, expert technical guidance, and proactive maintenance—minimizing downtime and maximizing your investment in precision metrology.
Technical Support & Troubleshooting
Access 24/7 global technical assistance via phone, email, or remote diagnostics. Our ISO-certified engineers resolve software, hardware, and calibration issues swiftly.
Preventive Maintenance Programs
Extend equipment lifespan with scheduled on-site maintenance, including optics cleaning, alignment checks, and calibration verification—all tailored to your production cycles.
Calibration & Recertification
Guarantee measurement traceability with NIST/ISO 17025-compliant calibration services. Receive full documentation and compliance certificates for audit readiness.
Spare Parts & Consumables
Rapid global dispatch of genuine parts (e.g., lamps, lenses, stages). Online tracking ensures transparent delivery timelines.
Operator Training & Skill Development
On-site or virtual training sessions empower your team to master advanced features, measurement techniques, and routine upkeep—boosting productivity.
Warranty & Upgrade Solutions
Benefit from flexible warranty extensions and technology upgrade paths. Future-proof your systems with the latest software enhancements and hardware retrofits.
